To draw a laser bolt with arbitrary orientation in 3D, you can use a trick of drawing the bolt itself as a quad (oriented with the bolt at the mid-point of two of its sides) and then billboard half end-caps that stick out on either side of the bolt quad. With the right texture and mapping, it will look okay.

The texture to use would look something like this:
128x64 JPEG

The mapping from this texture to three quads should be divided something like this:
128x64 JPEG

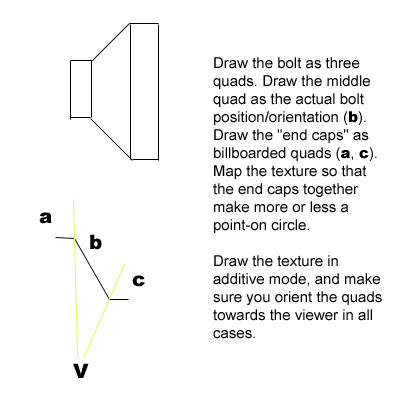

The three quads you draw need to be oriented correctly towards the camera; something like this:
400x400 PNG

Once you start seeing the billboard head-on, you may wish to start pulling the yon quad closer to the camera, else you will start noticing that the sizes of the near and the far end are different.
